Outdoor Cabinet Series Industrial and Commercial ESS

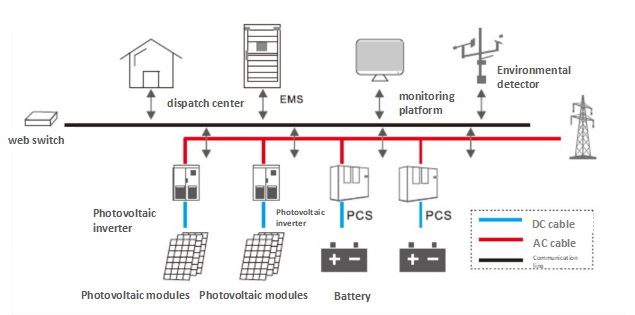

Huijue Group's industrial and commercial energy storage system adopts an integrated design concept , integrating batteries in the cabinet, battery management system BMS , energy management system EMS , modular converter PCS and fire protection system . The modular design can be flexibly expanded to adapt to various scenarios . It has the functions of power grid voltage regulation, three-phase unbalance control, harmonic control, etc., which can improve power quality, load tracking, backup power supply , peak shaving and valley filling. Reduce energy costs for enterprises, increase green energy use, and maintain safe and stable system operation.

1.Fast power response, supporting multiple modes such as virtual power plant, grid-connected , and off-grid

2.All-in-one design greatly reduces transportation, on-site installation time and cost

3.Local collection, intelligent monitoring, remote operation and maintenance

4.The standardized interface can connect multiple machines in parallel, which is easy to expand, and the batch manufacturing process is easier to guarantee

5.Intelligent installation, operation and maintenance, support node self-adaptation, fault indication, etc., reducing on-site and operation and maintenance workload by 70%

6.No isolation design, improve system efficiency  ndependent single cluster battery , no circulating current, reduce power loss

7.Six-layer security protection design,multi-information fusion

8.Local / remote upgrade, broadcast program upgrade, compared with traditional point-to-point upgrade efficiency increased by more than 90%

Shaving peaks and filling valleys

During peak electricity demand to reduce expensive electricity bills

Improve the stability of power system

By storing electricity and dispatching it when needed

Backup power

When the grid is out of power, or use as backup power in areas without power

Peak valley arbitrage

Arbitrage by using peak and valley electricity prices in different time periods

The utilization of renewable energy

The day maximize photovoltaic power usage, while excess power is stored for use at night

Costs for power grid upgrades

Reduce the initial investment in power grid construction under the application of distributed power system scenarios
